Dual Chamber Vacuum Sealer for Precise Food Packaging

UMPACKT's DC-800 is a double chamber vacuum sealer that can work in any inspected facility. The two 38.5" x 31.1" chambers are adjacent. When the lid is covering one of the chambers you are free to prepare your next job in the open chamber. This is a great way to improve efficiency and can easily be run by a single operator.

As with all the UMPACKT chamber vacuum sealers, this machine is ETL-tested, certified, and labeled as meeting UL and CSA safety standards for packaging equipment as well as NSF sanitary standards. This heavy-duty functional machine utilizes all # 304 stainless steel construction, a reinforced chamber deck, a heavy-gauge lid, and an easy-cleaning flat working deck.

The special feature that sets us apart is the quick disconnect seal bars that can be removed and installed in seconds. Forget waiting for maintenance when a seal wire breaks. Simply keep a spare bar on hand, and you can be back to work in under a minute, without special tools. Easily removable cushion bars and spacer boards make cleaning the deck surface a breeze, minimizing downtime and keeping your operation running hygienically.

It features a Busch (model RA0100) (5HP) vacuum pump for reliable and powerful vacuum performance.


Standard Features:

* Stainless Steel Construction
* Flat Chamber for Easy Cleaning
* PNC-01 Microprocessor Control
* 10mm Wide Seals
* Bladder Activated Sealing
* High-Density Plastic Filler Plates
* Pump Overload Warning Indicator
* Oil Change Indicator
* Heavy-Duty Casters
* Air Assist
* Busch RA0100 (5HP) Vacuum Pump
* Quick Release Seal Bar – No Tools Required
* UL, CE Certified & Labeled

Electrical Specification:
* Power Supply: 3PH 220V 60HZ 22AMP
* Seal Bar Width: 10 mm
* Seal Bar Length 31.4” /800 mm
* Vaccum Pump Capacity Busch 100m3/hr
* Chamber Size 38.6”x31” (980x787 mm)
* Chamber Depth 10"(255 mm)
* Machine Weight 1261lbs/572kg

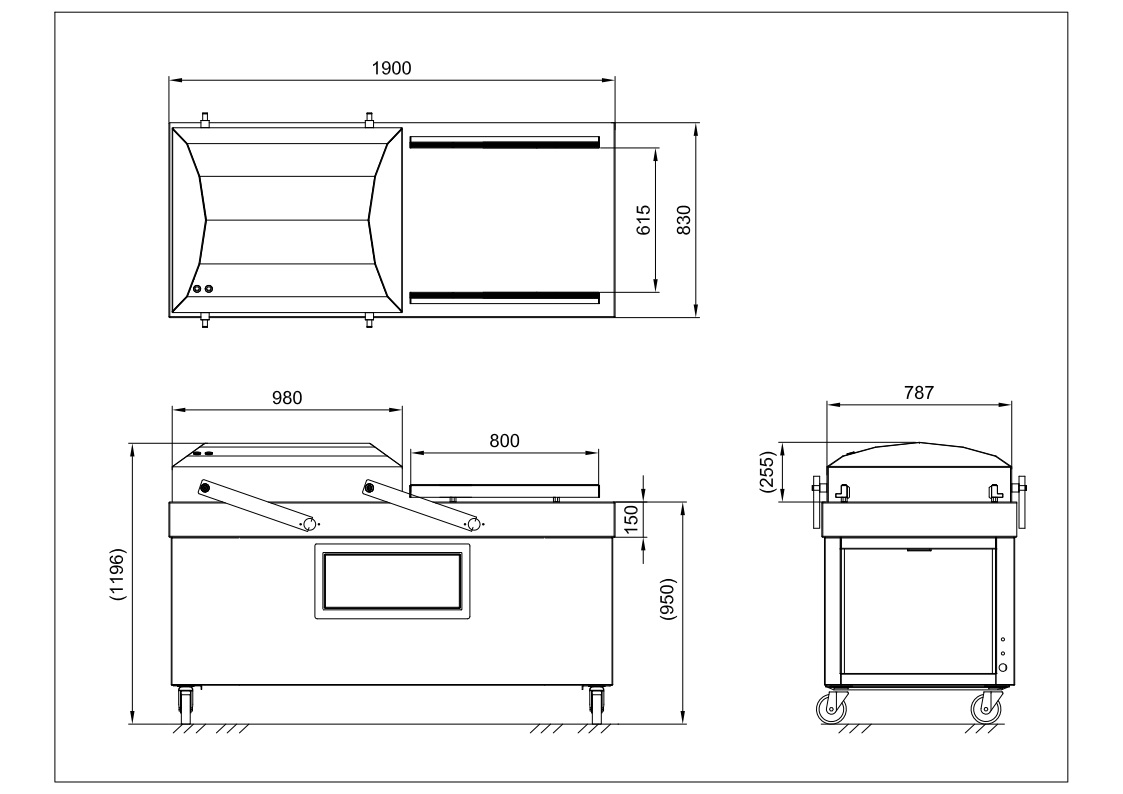

* Machine Size 75”x33”x47” (1900x830x1190mm)


* Higher Capacity Vacuum Pump
* Chamber Height
* Soft Air
* Gas Flush System
* Twin Beam Sealing
* Top / Bottom Seal System
* Single Phase Vacuum Pump up to 205-305m3/h (10HP)
* Mechanical Knife Cut-Off System
* Automatic Lid Transfer
* Operating Voltage
