Efficient Twin Chamber Vacuum Packaging Machine with Heat Sealing Bars
DC-900

The DC-900 Vacuum Sealer from UMPACKT is a double chambered vacuum sealer and it can work in any inspected facility. The two  48”x41.6" chambers are adjacent.  When the lid is covering one of the chambers you are free to prepare your next job in the open chamber. This is a great way to improve efficiency and can easily be run by a single operator.  As all the UMPACKT chamber vacuum sealers, this machine is ETL tested, certified, and labeled as meeting UL and CSA safety standards for packaging equipment as well as NSF sanitary standards. This heavy-duty functional machine utilizes all # 304 stainless steel construction, a reinforced chamber deck, heavy-gauge lid, and an easy-cleaning flat working deck.  The special feature that sets us apart is the quick disconnect seal bars that can be removed and installed in seconds. With these easy-to-disconnect seal bars, there is no need to wait for maintenance to show up with tools when a seal wire breaks. By simply having a spare bar on hand, you can be back up and running in under a minute without any special tools.  Easily removable cushion bars and spacer boards make cleaning the deck surface fast and efficient.  It features a Busch (model RA0200) (7.5HP) vacuum pump for reliable and powerful vacuum performance.





Standard Features:
* Stainless Steel Construction
* Flat Chamber for Easy Cleaning
* PNC-01 Microprocessor Control
* 10mm Wide Seals
* Bladder Activated Sealing
* High-Density Plastic Filler Plates
* Pump Overload Warning Indicator
* Oil Change Indicator
* Heavy-Duty Casters
* Air Assist
* Busch RA0200 (7.5HP) Vacuum Pump
* Quick Release Seal Bar – No Tools Required

* UL, CE Certified & Labeled


Electrical Specification:
* Power Supply: 3PH 220V 60HZ 45AMP
* Seal Bar Width: 10 mm
* Seal Bar Length 39.4” /1000mm
* Vacuum Pump Capacity Busch 205m3/hr
* Chamber Size 48”x41.6” (1218x1057 mm)
* Chamber Depth 12.5” (317.5 mm)
* Machine Weight 2337lbs/1060kg

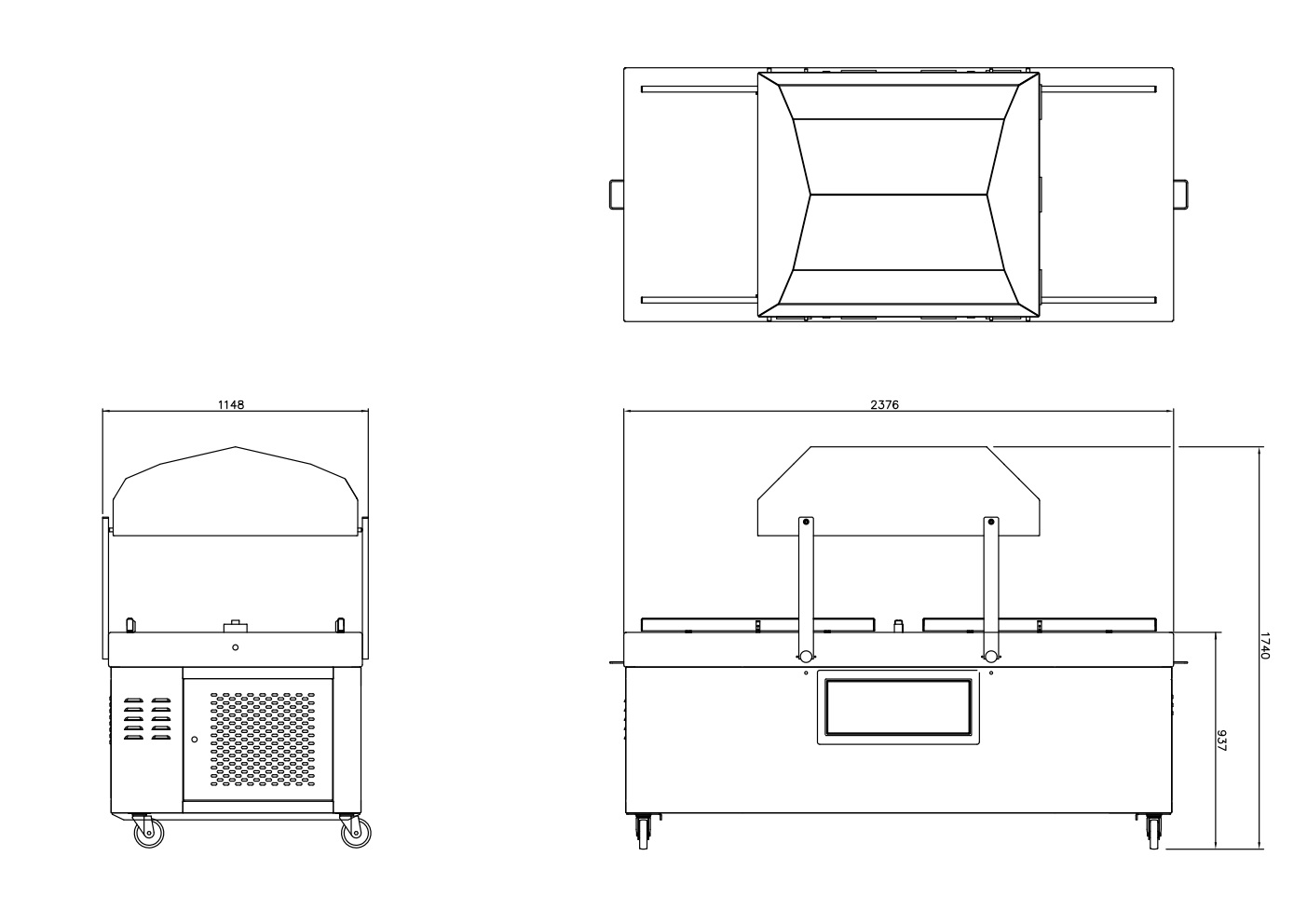

* Machine Size 94”x43”x50” (2376x1097x1260mm)

Options:
* Higher Capacity Vacuum Pump
* Chamber Height
* Soft Air
* Gas Flush System
* Twin Beam Sealing
* Top / Bottom Seal System
* Mechanical Knife Cut-Off System
* Automatic Lid Transfer
* Operating Voltage
* Custom Sized Machine

* Single Phase Vacuum Pump up to 305m3/h (10HP)
