Nozzle Type Horizontal Vacuum Packaging Machine

VVB series MIT external vacuum sealer model is made in metal construction electrostatic painted. They are equipped with 20 programs of low-voltage digital control panels and a pump overload warning indicator. 10mm double sides sealing is good for thicker bags.  The nozzle vacuum sealers are suitable for solid and dry goods packing, such as coffee beans, electric parts, plastic material, and seeds. With a standard vacuum pump and retractable stainless-steel nozzle, customers can choose the process of vacuum, gas flush, and seal.

[Video]VVB External Nozzle Vacuum Sealing Machine

Standard Features:

  • Twin Beam Sealing
  • Electronic IC board Control
  • Cylinder Activated Sealing
  • dry vacuum pump
  • High-Pressure Air Request 5kg/cm2
  • 10mm Wide Seals Pump Overload Warning Indicator
  • Required an outside air compressor of 6-7kg/cm
  • Loading weight of Working Table: <10KGS

Electric specifications:

  • Power Supply 1PH 110/220V 60Hz
  • Seal Bar Width 10 mm
  • Vacuum time 0-99 sec
  • Sealing time 0-3.0 sec
  • Cooling time 0-10 sec
  • Seal Bar Length 600mm
  • Vacuum Pump Capacity 120L/min
  • Machine Weight Approx.130kg

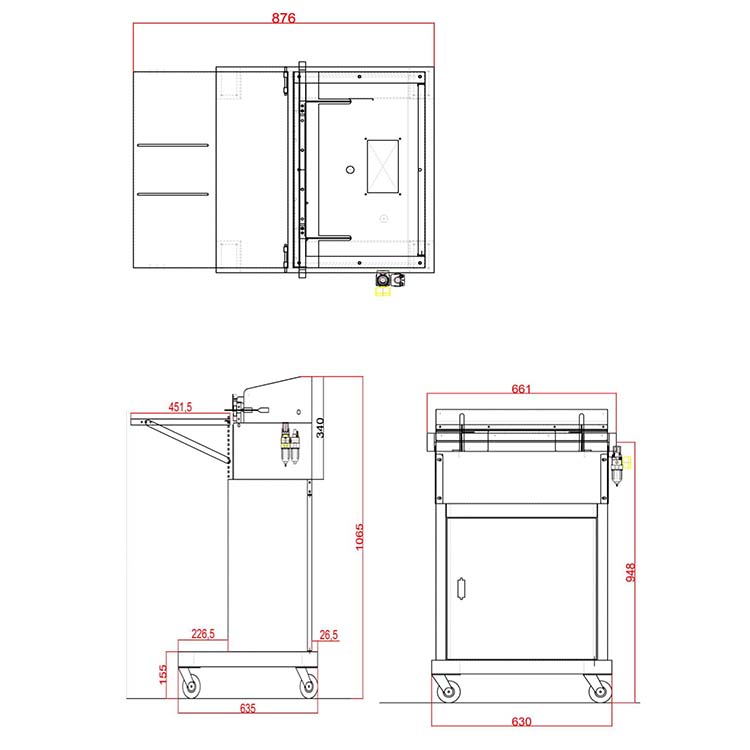

  • Machine Size:650x410x970mm
  • Working table:600x600mm
  • Watt: 1760W


  • Gas flush/purge
  • Data Coding imprinter
