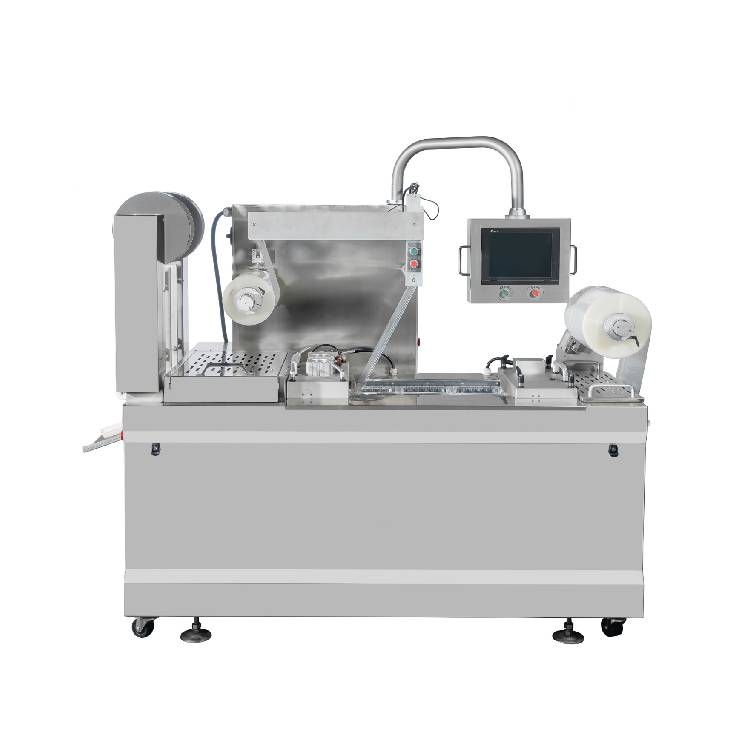

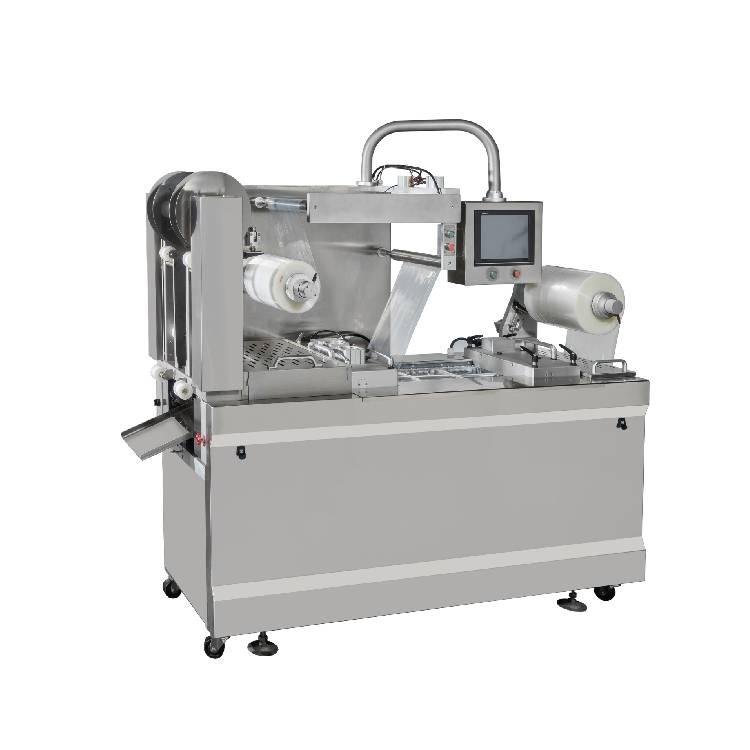

Automatic Commercial Thermoforming Vacuum Sealing Machine
RS-320

Standard Features:

* Stainless steel frame Stainless steel loading area
* Hinged dies for fast die change
* All stainless-steel chains with Delrin chain guides
* PLC / HMI control system with a large 10″ screen
* Quick compressed air forming
* Servo drive film transport chain
* Mechanical die-lifting stations with air rams
* Busch vacuum pump
* Digital vacuum monitoring for fast troubleshooting
* Vacuum calibration ports for audits


Specification:
* Power supply: 3Phase 220/380/440V 50/60HZ
* Forming System Vacuum Generator
* Vacuum PUMP BUSCH 63-205M3/HR
* Output 4 - 10 Cycles / Minute
* Compressed air supply 5 CFM / 120 PSI
* Packaging Sharpe Rectangle
* Forming film width 320MM - 660MM
* Cut off Length Max. 660MM
* Cooling water supply .25 GPM
* Forming Film type Flexible / Rigid to 0.3mm
* Forming depth Max. 120mm die change method Manual
* Loading area 2 X Cut off (1 Full and 2 halves)



Option:

*Film Index 240mm with 2 loading stations

*Perimeter sealing

*Vacuum pump sizes

*Printing system

*Gas injection system (MAP)

*Water cooling chiller

*Booster pump

*Multiple supply voltage

Power supply 3Phase 220/380/440V 50/60HZ
Forming System Vacuum Generator
Vacuum PUMP BUSCH 63-205M3/HR
Output 4 - 10 Cycles / Minute
Compressed air supply 5 CFM / 120 PSI
Packaging Sharpe Rectangler
Forming film width 320MM - 660MM
Cut off Length Max. 660MM
Cooling water supply .25 GPM
Forming Film type Flexible / Rigid to 0.3mm
Forming depth Max. 120mm Die channge method Manual
Loading area 2 X Cut off (1 Full and 2 halves)
